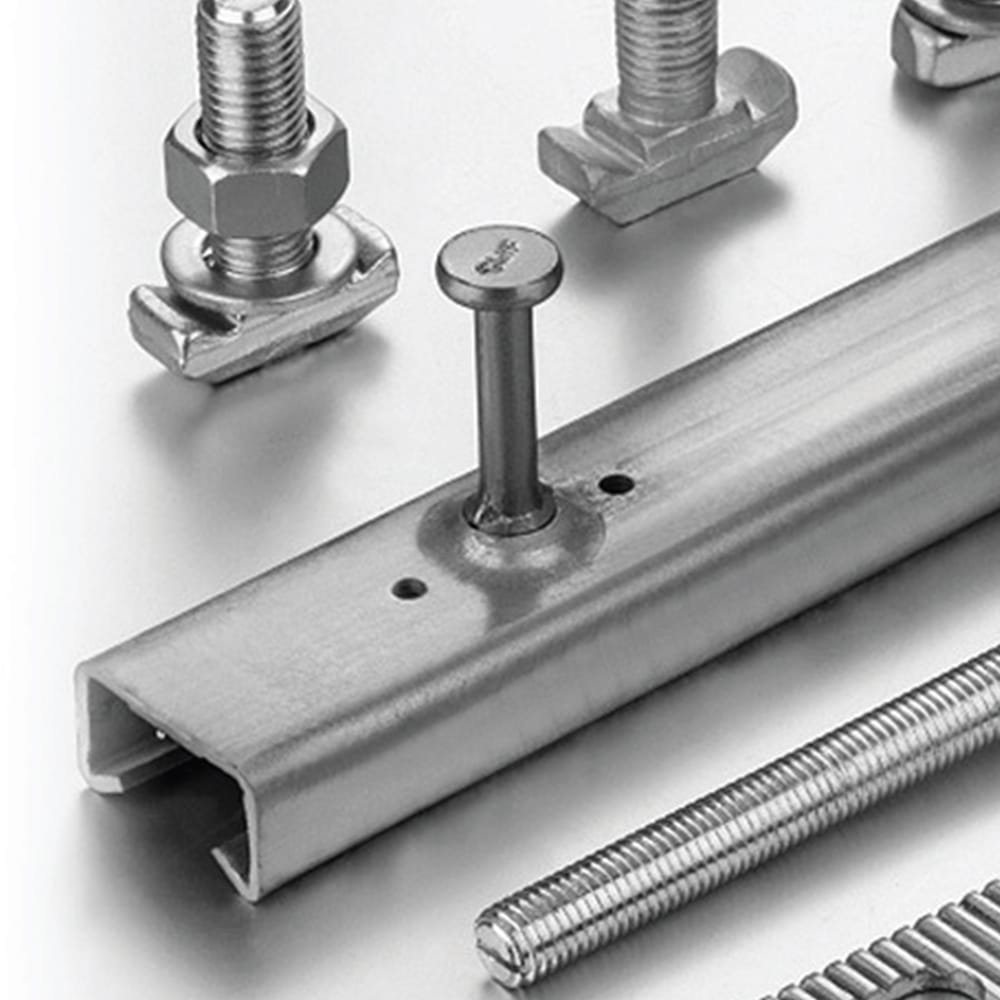

C-Channel & T-Bolts

The C-Channel and T-Bolts system is a versatile cast-in connection solution featuring a highly adjustable C-shaped profile and integrated metal anchors designed to completely eliminate on-site drilling.

Working on fast-paced construction sites means you are constantly balancing tight deadlines with the need for absolute structural integrity. Traditional anchoring methods often require labour-intensive, post-pour drilling into hardened concrete, which not only slows down your installation time but also introduces the risk of misalignment. What if you could secure your heavy-duty connections quickly and accurately right from the start, without a single drill bit touching the concrete?

Key Features and Operational Benefits

• Highly Adjustable C-Shaped Profile: The continuous channel design allows for limitless positioning along the axis. This flexibility ensures that you can achieve precise alignment for all your attachments, easily compensating for standard construction tolerances without the guesswork.
• Zero On-Site Drilling: By utilizing this cast-in connection system, you completely bypass the need to drill into concrete. This significantly reduces installation time, minimizes hazardous silica dust on the job site, and preserves the uncompromised strength of the concrete structure.

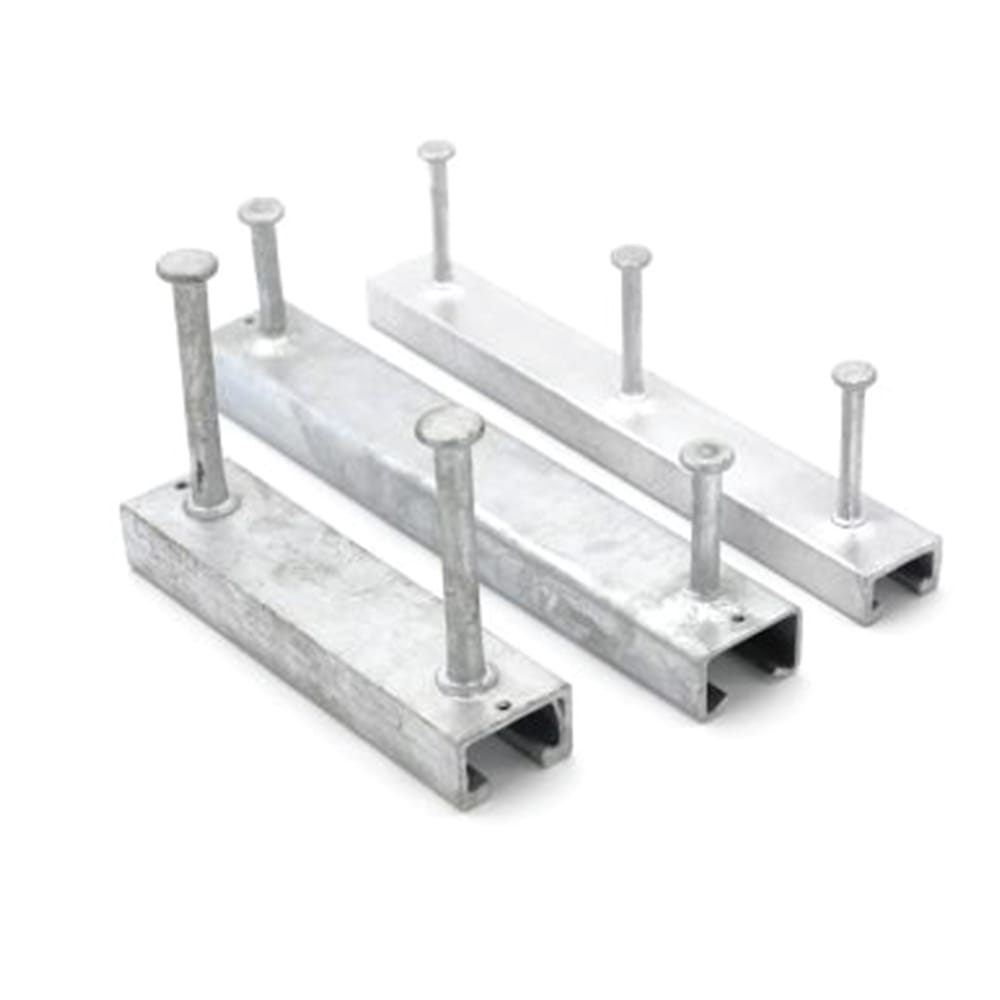

• Integrated Metal Anchors: The system is equipped with robust integrated metal anchors that embed securely into the concrete during the pour. This provides a reliable, heavy-duty foundation capable of handling substantial loads for various structural attachments.

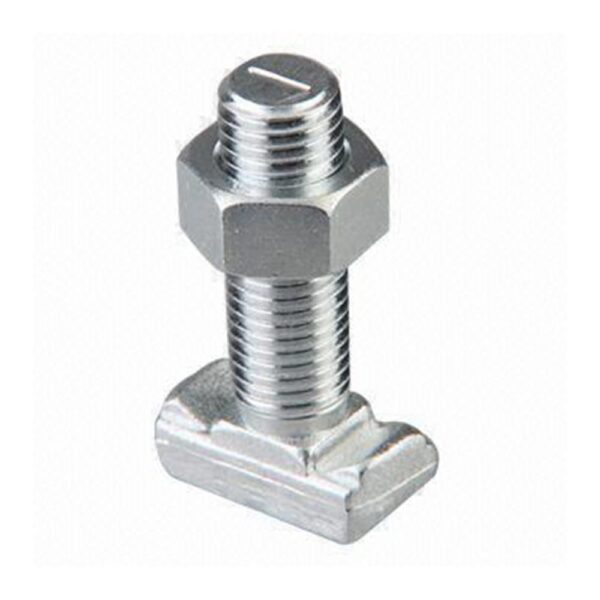

• Versatile Component Integration: The system pairs perfectly with included T-bolts, creating a complete, ready-to-assemble fastening point that streamlines the workflow for contractors, engineers, and builders.

Ideal Project Scenarios

This highly adjustable anchoring solution excels in environments where precision and speed are paramount. It is an indispensable system for precast manufacturers looking to embed reliable connection points before the concrete cures. Large construction firms will find it exceptionally useful for installing curtain wall facades, elevator guide rails, and complex piping or HVAC supports across commercial builds. Even industrial clients securing heavy machinery will benefit from the robust load capacities and exact alignment offered by the T-bolt integration.

Dedicated Support and Expertise

At Global Source, we are committed to providing reliable solutions that go beyond the product itself. To ensure you get the absolute most out of your cast-in connection systems, we offer customized training tailored to meet the specific needs of your crew. These specialized training sessions can be conducted directly at your project location or at our main offices, ensuring your team is fully equipped to maximize safety, efficiency, and performance on every job.

Product Code	Profile	B (mm)	H (mm)	A (mm)
GLCL2815	28/15	28	15	12
GLCL3817	38/17	38	17	18
GLCL4025	40/25	40	25	18
GLCL4930	49/30	49	30	22
GLCL4931	49/30-1	49	30	22



T-Bolt Ø	Gen.	SS 4.6	SS 8.8
M10	15	15	40
M12	25	25	70
M16	40	65	180
M20	75	130	360
