PT 1000

The PT 1000 is a state-of-the-art butt-welding machine designed for polyethylene (PE), polypropylene (PP), PVDF, and other thermoplastic pipe materials, ensuring reliable performance for pressurized pipelines.

Engineered for efficiency and ease of use, the PT 1000 combines advanced technology with user-friendly features, making it an essential tool for construction professionals in Riyadh and Jeddah. Whether you’re working on water, gas, or other pipeline projects, this machine is built to meet your needs.

Key Features

• Self-Aligning Structure: The innovative self-aligning design ensures precise alignment of pipes, reducing setup time and enhancing welding accuracy.
• Inclined Clamps: The inclined clamps provide a comfortable operating angle, allowing for easier handling and improved ergonomics during the welding process.
• Digital Thermostat: Quick and precise temperature settings are achieved with the digital thermostat, ensuring optimal welding conditions for various materials.
• Independent Analog Thermometer: Even when the power is off, the independent analog thermometer allows users to monitor temperature, ensuring safety and reliability.
• Electric Facing Tool: Equipped with a safety microswitch, reversible blades, and a facing tool stopper, this feature allows for controlled and efficient facing operations.

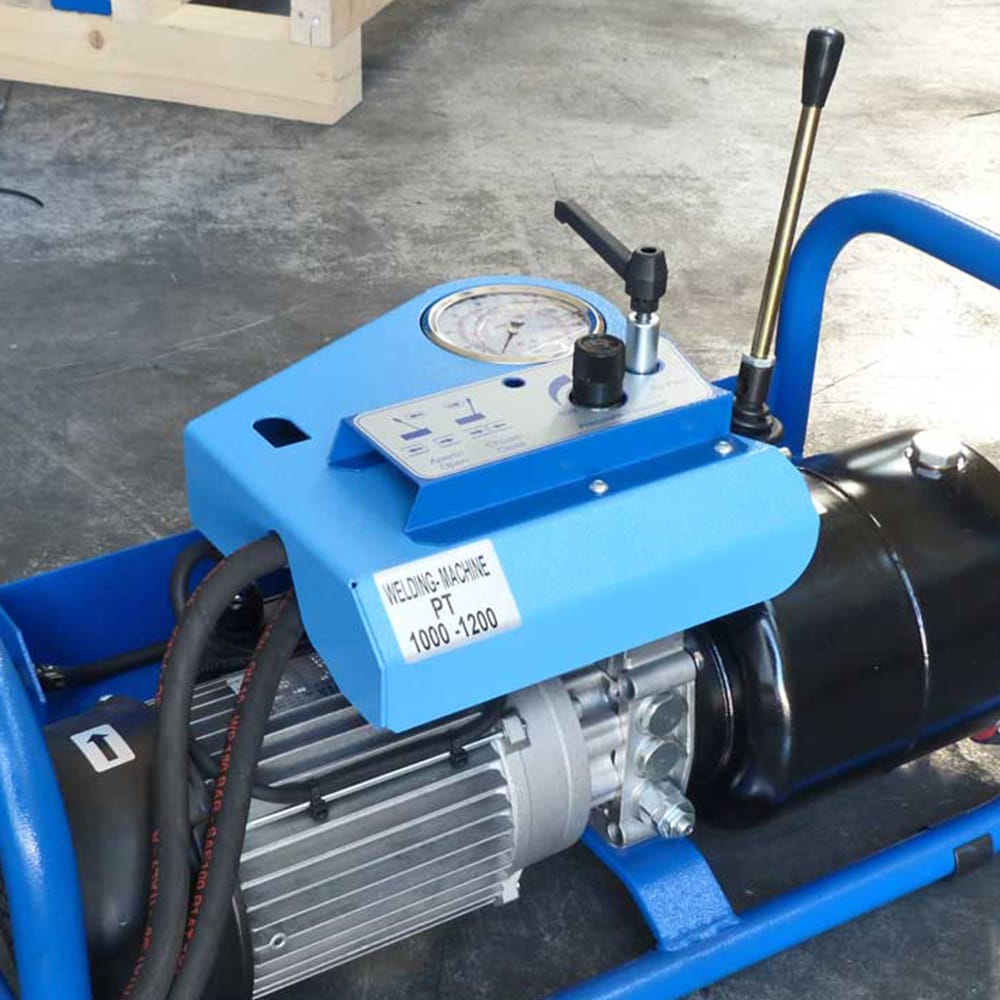

• Hydraulic Power Unit: The hydraulic power unit includes an accumulator, regulating valve, and by-pass valve, providing consistent power and performance during operation.
• Lightweight Aluminum Reductions: The aluminum reductions enhance rigidity while keeping the machine lightweight, facilitating easier transport and setup.
• Compliance with Safety Standards: Manufactured and tested in accordance with UNI 10565 and CE safety regulations, ensuring peace of mind for users.

Specifications

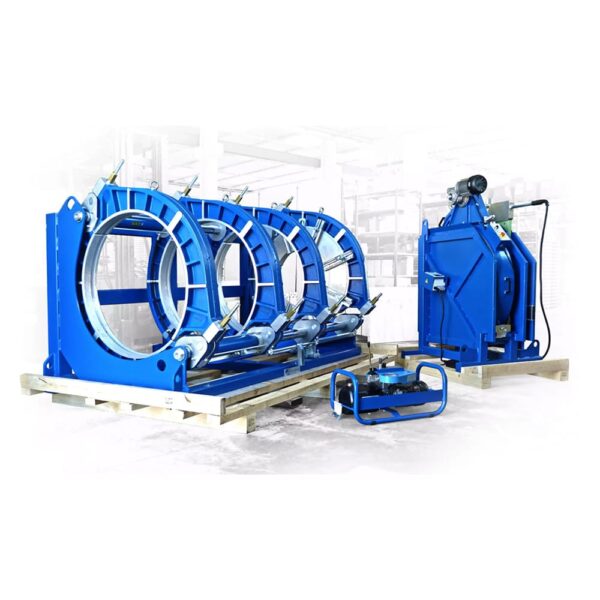

• Basic Diameter: 1000 mm, 2-cylinder machine with four light alloy clamps and automatic heating mirror release device.
• Removable Electric Facing Tool: Features reversible blades, a stop, and a safety microswitch for enhanced safety.
• PTFE-Coated Heating Mirror: Removable heating mirror with electronic temperature control and an independent reading analog thermometer.
• Electrohydraulic Control Unit: Complete with pressure regulation, by-pass valve, and accumulator for optimal performance.
• Ground Support: Provides stability for the heating mirror and facing tool during operation.

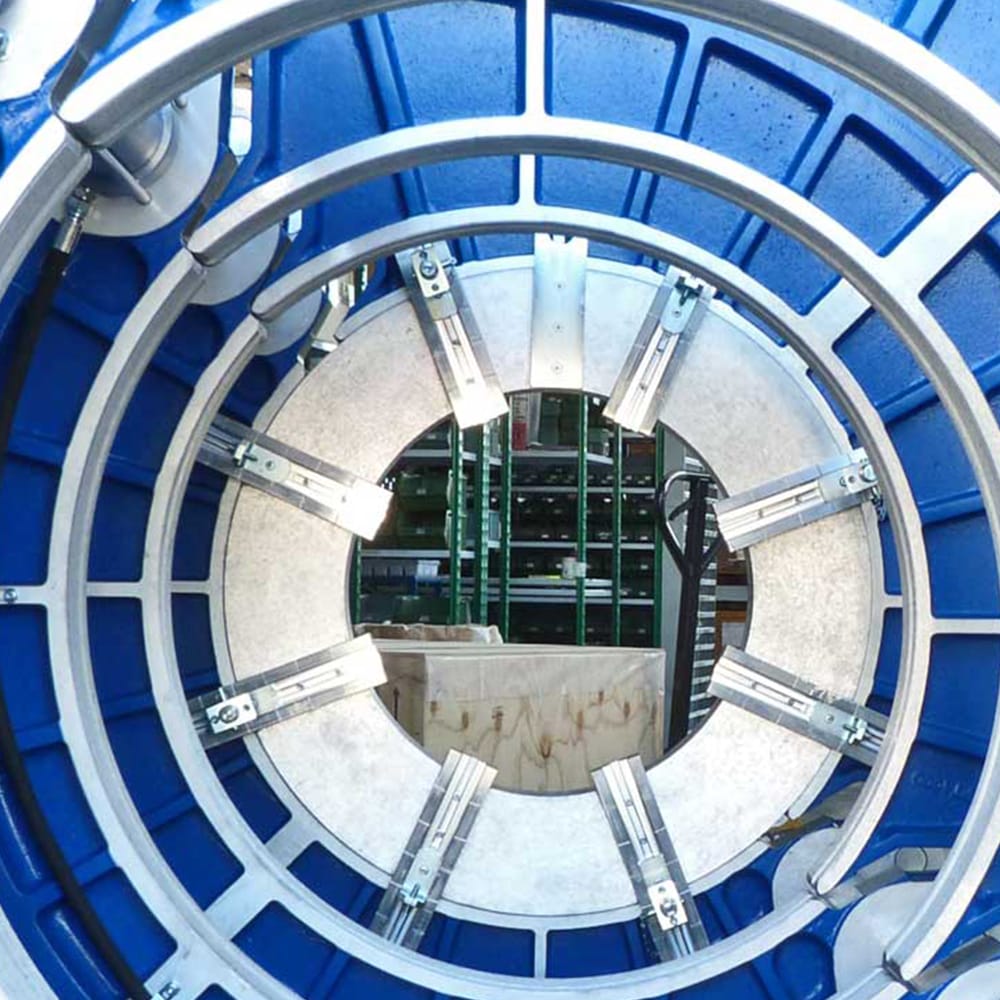

• Reducer Sets: Includes aluminum reducers for diameters 630, 710, 800, 900, and 1000 mm.
• Power Supply: Available in 400V Three-phase or 230V Three-phase options.
• Frequency: Operates at 50 / 60 Hz.

Use Cases

The PT 1000 excels in various scenarios, making it a versatile choice for construction professionals:

• Water Pipeline Projects: Ideal for welding PE and PP pipes in municipal water supply systems, ensuring leak-proof connections.
• Gas Pipeline Installations: Perfect for constructing safe and reliable gas pipelines, meeting stringent safety standards.
• Industrial Applications: Suitable for various industrial settings where thermoplastic piping is required, providing robust and efficient solutions.

• Welding Range
  Ø 630 – 1000 mm
• Power Supply
  400V Three-phase / 230V Three-phase
• Frequency
  50 / 60 Hz
• Operating Pressure
  3* – 150 bar
  * Recommended Value
• Standard Voltage
  400 V 3f – 50 Hz
• Power
  19.2 kW – 31 A
• Cylinders’ Total Section
  41.21 cm²
